ED 7x32 High Powered Binoculars with Full Multi Coating and IPx7 Waterproof for Adults Bird Watching ,Travel, Hiking, Hu

Ask Lasest Price
Brand Name :	Hollyview
Model Number :	YBR34R 7X32
Certification :	CE FCC ROHS ASTMF903 CFR CPSIA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1,000,000 pcs/month
Delivery Time :	30-40days

Add to Cart

Product Details
Company Profile

ED 7x32 High Powered Binoculars with Full Multi Coating and IPx7 Waterproof for Adults Bird Watching ,Travel, Hiking, Hu

ED 7x32 High Powered Binoculars with Full Multi Coating and IPx7 Waterproof for Adults Bird Watching ,Travel, Hiking, Hunting

About This Item

1. Application
The 7×42 straight telescope is a handheld binocular telescope with a roof prism optical structure design and a rough measurement function. It is mainly used to observe the environment, scenery and targets.

2. Features
Small size and light weight: Through reasonable structural design, the product weight is less than 660g.
Good sealing: The mirror body is filled with dry nitrogen, which can maintain good dryness and sealing in various environments to ensure comfortable observation requirements.
Good anti-vibration performance: The product can maintain a good use state in the event of sudden drop and vibration.
Strong material:Double separated lens, aluminum alloy integrated lens body

ED 7x32 High Powered Binoculars with Full Multi Coating and IPx7 Waterproof for Adults Bird Watching ,Travel, Hiking, Hu

3. Main components and functions
The telescope consists of two major parts: the optical system and the structural system. Among them, the optical system mainly realizes the imaging function of the telescope; the structural system mainly carries the components of the optical system and assembles them into a complete product.

4. Structural system
The telescope consists of left/right eyepiece group, left/right mirror body, left/right objective lens group, etc. The telescope structural system realizes the observation of the target through steps such as eye distance setting and diopter adjustment.

5. Vision adjustment
When using a telescope to observe a target, you should hold the telescope facing the target, close your left eye, and turn the right eyepiece group until the target is clear; then open your left eye, close your right eye, and turn the left eyepiece group to adjust the target to be clear. Use the above method to continuously adjust the left and right eyepiece groups until both eyes can see the target clearly.

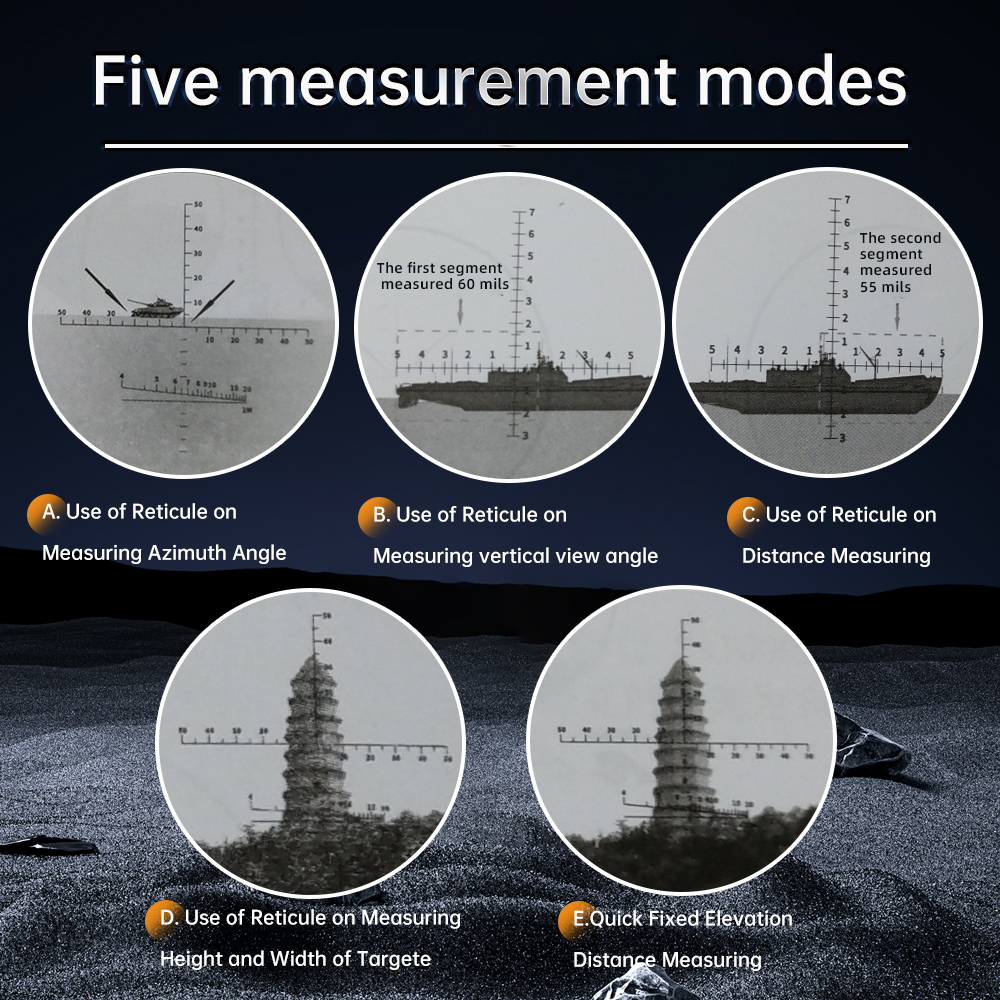

6. Use of the reticle
a. Use of Reticule on Measuring Azimuth Angle
b. Use of Reticule on Measuring vertical view angle
c. Use of Reticule on Distance Measuring
d. Use of Reticule on Measuring Height and Width of Targete
e.Quick Fixed Elevation Distance Measuring

7. Use with a gas mask or glasses
The rubber eyecup of the telescope can be folded down, which is convenient for people wearing glasses and gas masks to observe directly.

ED 7x32 High Powered Binoculars with Full Multi Coating and IPx7 Waterproof for Adults Bird Watching ,Travel, Hiking, Hu

Specification

Magnification	7×	7×
Objective Diameter	φ42mm	φ32mm
E×it Pupil Diameter	φ6mm	φ4.57mm
Eye Relief	22.2mm	20.5mm
Field of View - Angular	7.7°	7.7°
Resolution (Center)	≤6.2"	≤7"
Dark Inde×	17.1	15
Minimum Focus Distance	9.8m	9.8m
Relative Brightness	36	20.9
Water depthWater Resistance / Proof	Water depth 1.5m/120min	Water depth 1.5m/120min
Weight (Binocular Only)	950g	650g
Prism System	Porro	Porro
Focus System	Separate modulation	Separate modulation
Reticle	Yes	Yes
Armor	Yes	Yes
Tripod Mounting Screw	Yes	Yes
Retractable Eye Cups	Yes	Yes
Nitrogen Fill	Yes	Yes

FAQ

1. Are your company a manufacturer or trading company?

We are well-experienced manufacturer specialized in producing binoculars,rifle scopes, monocular, spotting scope, astronomical telescopes, optics accessories etc., for more than 15 years.

2. Does your product have any warranty?

Yes,we offer 5 years limited warranty for rifle scopes vs 2 years limited warranty for other optical instruments such as binoculars, monocular, spotting scope, astronomical telescopes, etc.,

Damage due to misuse, ill treatment and unauthorized modifications and repairs are not covered by our warranty.

3. What's your payment method?

We usually accept the payment methods include T/T (Bank Transfer), Western Union, paypal and MoneyGram. Payment methods can be adaptable to your specific requirements.

For different countries, the payment methods we accept varies from each other.

50% deposit in advance and 50% balance before shipping. Payment terms can be negotiated.

4. What's your shipping method?

We provide comprehensive shipping methods.

For small quantity orders we ship by DHL,FEDEX, EMS/TNT Express service which is the fastest. Postal ways are also acceptable for small orders.

For large quantity orders we ship by Air or by sea, we can also ship order to buyer’s cargo agent in China.

We provide DDP service to both express way and air and sea shipping!

5. Do your company provide customization, private label service?

YES. OEM/ODM/Customization/Making your own logo/ brand are warmly welcome!

We can make adjustment or change to our products to meet your demands.

We can design, innovate, develop and produce new item molds according to your specific requirements.Packaging can be made as per your artwork and we also provide professional designer to make design for you free of charge if you like.
