thermal monocular TMG10 PRO helmet thermal imaging monocular for hunting 640X512(50HZ)

Ask Lasest Price
Brand Name :	Hollyview
Model Number :	TMG10 PRO
Certification :	CE ROHS
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram

Add to Cart

Product Details
Company Profile

thermal monocular TMG10 PRO helmet thermal imaging monocular for hunting 640X512(50HZ)

thermal monocular TMG10 PRO helmet thermal imaging monocular for hunting 640X512(50HZ)

※50Hz High Frame Rate
※Adopting the most advanced uncooled sensor+passive IR thermal Imaging Tech
※15.5°X12.4° Super Large Field of Angle
※IPX67 nitrogen filled waterproof
※Cross reticle multiple options
※Magnification:1x optical magnification & 8x digital zoom
※Display screen: 1920X1080 OLED screen resolution, high-frequency sensitivity detector
※Five image modes: Fusion/Red Hot/White Hot/Black Hot/Green Hot
※WIF connection,Support taking pictures,APP,Support video
After downloading the APP, connect your phone to watch the effect in real time.
※High-definition vision and field of view: Clear vision, high-definition imaging and large field of view
※Lens coating: Ultra-broadband infrared anti-reflection coating

thermal monocular TMG10 PRO helmet thermal imaging monocular for hunting 640X512(50HZ)

Vehicle detection distance ≥3000m
Human detection distance ≥1500m
Vehicle recognition distance ≥1500m
Person recognition distance ≥700m

thermal monocular TMG10 PRO helmet thermal imaging monocular for hunting 640X512(50HZ)

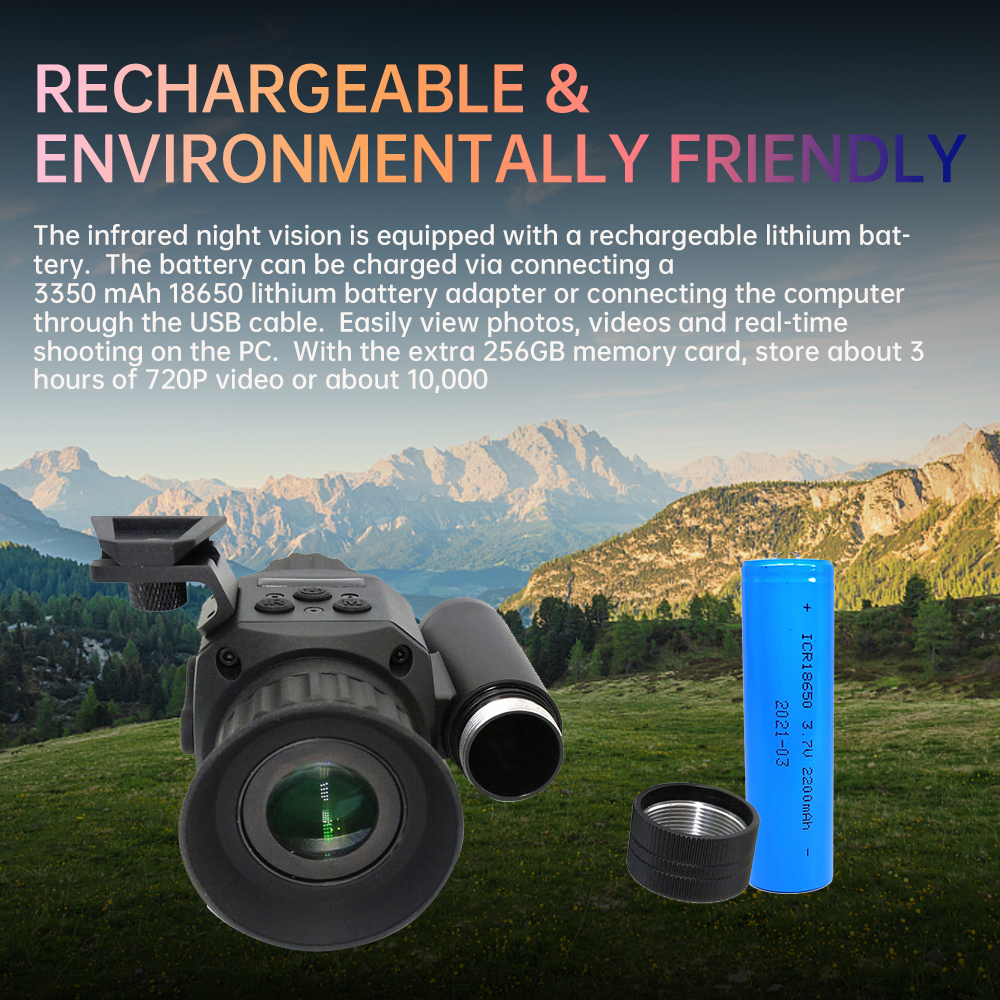

※RECHARGEABLE & ENVIRONMENTALLY FRIENDLY
The infrared night vision is equipped with a rechargeable lithium battery. The battery can be charged via connecting a
3350 mAh 18650 lithium battery adapter or connecting the computer through the USB cable. Easily view photos, videos and real-time shooting on the PC. With the extra 256GB memory card, store about 3 hours of 720P video or about 10,000

thermal monocular TMG10 PRO helmet thermal imaging monocular for hunting 640X512(50HZ)

※LIGHTWEIGHT & MULTIPLE FUNCTION
The mini thermal night vision device uses the international standard guide rail standards outdoor activities/patrol detection/security surveillance/search & rescue; such as hunting, hiking, bird watching.



  	 			Detector resolution
 			640X512

 			Pixel size
 			12㎛

 			Operating band
 			8–14㎛

 			MRTD
 			≤40MK

 			Lens focal length
 			25mm

 			Lens magnification
 			1X

 			Eyepiece magnification
 			16X

 			Eyepiece exit pupil distance
 			20mm

 			Field Angle
 			12.5°X10°

 			focusing
 			2m-∞

 			display
 			0.39′ OLED

 			Visibility control
 			±5°

 			Detection range for vehicles
 			3800m

 			Human detection range
 			1500m

 			Identification distance to vehicle
 			1800m

 			Human identification distance
 			700m

 			Image polarity
 			White heat, black heat, green heat, false color, red heat

 			Azimuth Angle
 			have

 			Pitch Angle
 			have

 			Angle of inclination
 			have

 			Blow up
 			1~4 X

 			Internal memory
 			32G

 			Brightness control
 			have

 			Contrast control
 			have

 			support
 			have

 			battery
 			1 18650# rechargeable battery

 			Endurance time
 			6hour

 			Data interface
 			TYPE-C

 			Working environment
 			‐30°~＋50°

 			Class of protection
 			IP67

 			Size (mm)
 			170X67X55

 			Weight (including battery)
 			360g
